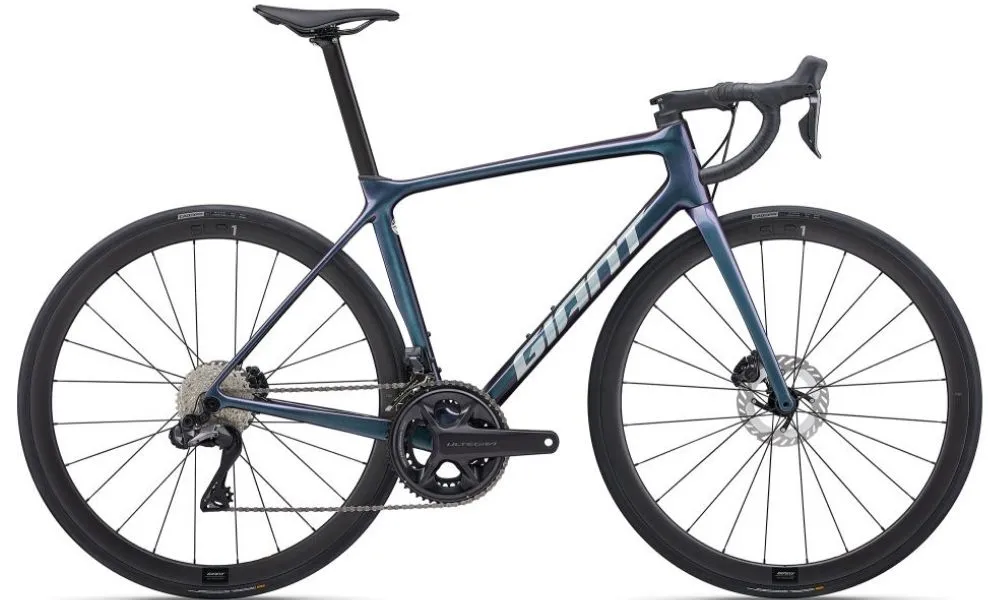

Name: Giant 2024 TCR Advanced Pro 0 Disc-Di2
SKU: 97653

Giant 2024 TCR Advanced Pro 0 Disc-Di2

CLIMB, CORNER AND DESCEND WITH GREATER SPEED, MORE CONTROL AND MAXIMUM EFFICIENCY. FROM THE MOUNTAINS TO THE FLATS, IN ALL CONDITIONS, THIS LIGHTWEIGHT COMPOSITE ROAD RACER TAKES YOU TO THE NEXT LEVEL.

Class-leading efficiency

Combining best-in-class stiffness-to-weight with strategically placed aero tube shaping, this frameset is engineered for faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

Integrated disc brakes deliver smooth, powerful stopping power and modulation for added control in variable weather and road conditions.

Specifications

Giant 2024 TCR Advanced Pro 0 Disc-Di2

Frame

Colour: Blue Dragonfly
Frame: Advanced-Grade Composite, disc
Fork: Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
Shock: NA

Drivetrain

Crankset: Shimano Ultegra, 36/52 with Giant Power Pro power meter XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Pedals:
Chain: Shimano Ultegra, CN-M8100
Bottom Bracket: Shimano, press fit
Rear Derailleur: Shimano Ultegra Di2 RD-R8150
Front Derailleur: Shimano Ultegra Di2 FD-R8150
Derailleur Shifter: Shimano Ultegra Di2 ST-R8170
Freewheel/Cassette: Shimano Ultegra, 12-speed, 11x34

Wheels

Tyres: CADEX Race, tubeless, 700x25c (26.5mm), folding
Wheels/Rims: Giant SLR 1 36 Carbon Disc WheelSystem, [F] 36mm, [R] 36mm
Hubs: [F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30t ratchet driver, CenterLock, 12mm thru-axle

Braking System

Brakes: Shimano Ultegra Di2 hydraulic, Shimano RT-CL800 rotors [F]160mm, [R]140mm
Brake Levers: Shimano Ultegra Di2 hydraulic

Other

Handlebar: Giant Contact SLR XS:40cm, S:40cm, M:42cm, M/L:42cm, L:44cm, XL:44cm
Stem: Giant Contact SL XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Saddle: Giant Fleet SL
Seat Post: Giant Variant, composite, -5/ 15mm offset

Geometry

Giant 2024 TCR Advanced Pro 0 Disc-Di2

XS

157 cm 169 cm
S

165 cm 175 cm
M

171 cm 181 cm
ML

177 cm 187 cm
L

183 cm 193 cm
XL

189 cm 199 cm

		XS	S	M	ML	L	XL
A	SEAT TUBE LENGTH (mm)	425	445	470	500	530	560
B	SEAT TUBE ANGLE	74.5°	74.0°	73.5°	73.0°	73.0°	72.5°
C	TOP TUBE LENGTH (mm)	520	535	550	565	580	600
D	HEAD TUBE LENGTH (mm)	120	130	145	165	185	200
E	HEAD TUBE ANGLE	71.0°	72.3°	73.0°	73.0°	73.0°	73.0°
F	FORK RAKE (mm)	45	45	45	45	45	45
G	TRAIL (mm)	72.1	64.0	59.2	59.2	59.2	59.2
H	WHEELBASE (mm)	976	977	980	991	1006	1020
I	CHAIN STAY LENGTH (mm)	405	405	405	405	405	405
J	BOTTOM BRACKET DROP (mm)	72	70	70	67	67	67
K	STACK (mm)	517	528	545	562	581	596
L	REACH (mm)	376	383	388	393	402	412
M	STAND OVER HEIGHT (mm)	706	725	747	773	800	816
N	HANDLEBAR WIDTH (mm)	400	400	420	420	440	440
O	STEM LENGTH (mm)	80	90	100	110	110	120
P	CRANK LENGTH (mm)	170	170	172	172	175	175
Q	WHEEL SIZE	700C	700C	700C	700C	700C	700C
