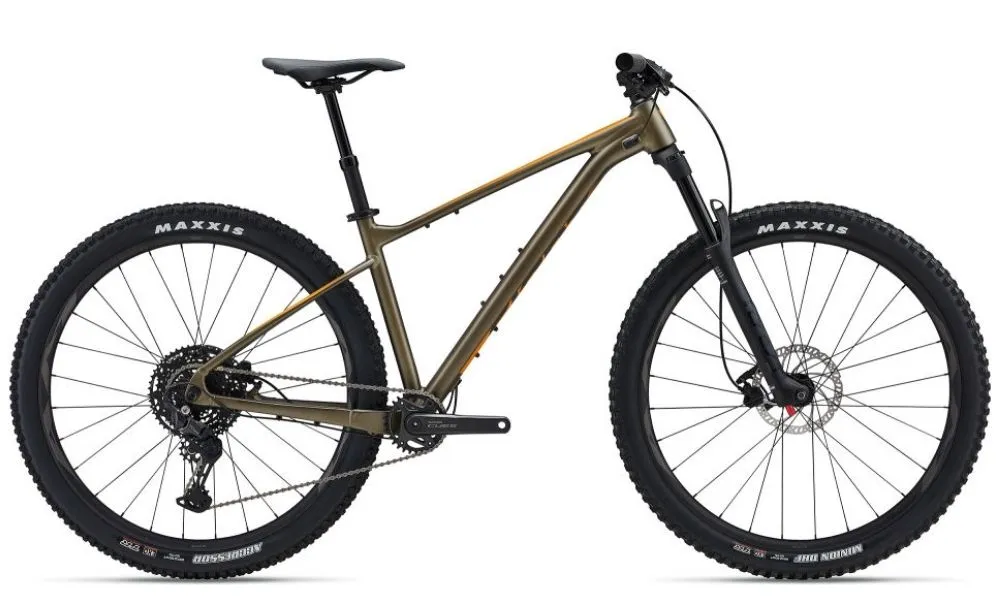

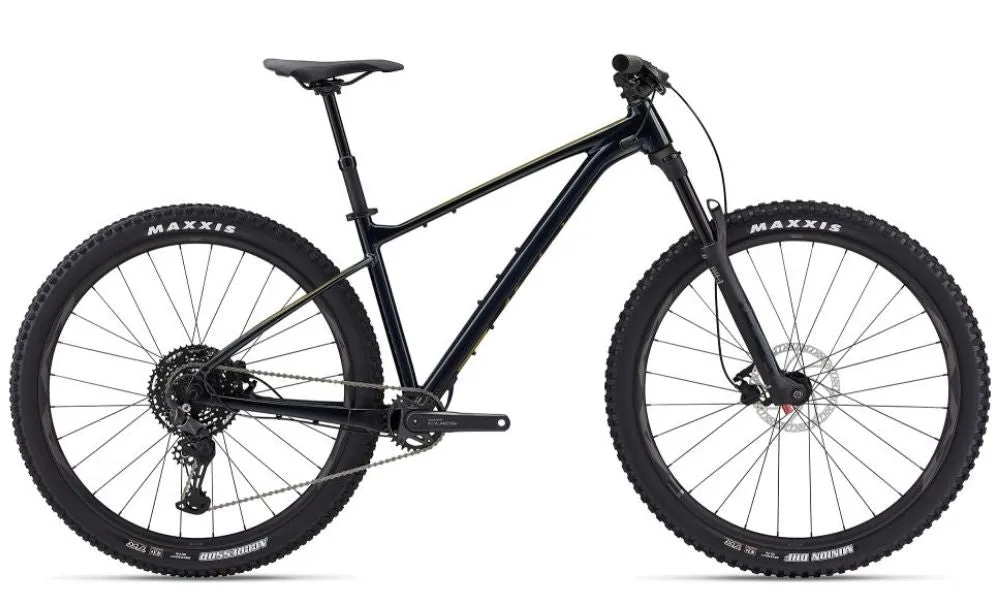

Giant 2024 Fathom 29 2
SAIL UP STEEP CLIMBS WITH SMOOTH EFFICIENCY. SWOOP DOWN SINGLETRACK DESCENTS WITH SPEED AND CONFIDENCE. THIS ALUMINUM HARDTAIL 29ER DELIVERS A BALANCED RIDE ON XC TERRAIN.
Trail tuned design
Balanced geometry with a 75-degree seat tube angle puts the rider in a powerful pedaling position on climbs, while a slacker 66-degree head angle boosts confidence and control on technical descents.
Responsive handling
Lightweight ALUXX SL aluminum hardtail frame offers agile acceleration and maneuverability to help riders climb, corner and hammer the flats with efficiency and speed.
Smooth control
Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks and ruts. Grippy, high-volume tires boost traction on rugged terrain. And a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning
Specifications
Giant 2024 Fathom 29 2
Frame
Colour: Pyrite Brown, Cold NightFrame: ALUXX SL-Grade Aluminium, 12x148mm thru-axle
Fork: Giant Crest 34 RCL, 130mm, 44mm offset, Boost 15x110
Shock: NA
Drivetrain
Crankset: Shimano CUES, U6000-1, 30t S:170mm, M:170mm, L:170mm, XL:170mmPedals:
Chain: Shimano CUES, LG500
Bottom Bracket: Shimano, threaded
Rear Derailleur: Shimano CUES, U6000, Shadow
Front Derailleur: NA
Derailleur Shifter: Shimano CUES, SL-6000, 1x10
Freewheel/Cassette: Shimano CUES, LG300, 11-48
Wheels
Tyres: [F] Maxxis Minion DHF, 29x2.5 WT, EXO/TR [R] Maxxis Aggressor, 29x2.5 WT, foldable, EXO/TWheels/Rims: Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
Hubs: Alloy, sealed
Braking System
Brakes: Tektro HDM275, hydraulic, Tektro rotors [F]180mm, [R]160mmBrake Levers: Tektro HDM275
Other
Handlebar: Giant Contact TR35, 35mmStem: Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Saddle: Giant Romero
Seat Post: Giant Contact Switch dropper, remote S: 125mm travel / 30.9 x 395mm M: 125mm travel / 30.9 x 395mm L: 150mm travel / 30.9 x 440mm
Geometry
Giant 2024 Fathom 29 2
-
- S
- 163 cm 172 cm
-
- M
- 171 cm 180 cm
-
- L
- 179 cm 188 cm
-
- XL
- 187 cm 198 cm
| S | M | L | XL | ||
| A | SEAT TUBE LENGTH (mm) | 380 | 430 | 465 | 495 |
| B | SEAT TUBE ANGLE | 75.0° | 75.0° | 75.0° | 75.0° |
| C | TOP TUBE LENGTH (mm) | 592 | 612 | 639 | 662 |
| D | HEAD TUBE LENGTH (mm) | 95 | 95 | 105 | 115 |
| E | HEAD TUBE ANGLE | 66.0° | 66.0° | 66.0° | 66.0° |
| F | FORK RAKE (mm) | 44 | 44 | 44 | 44 |
| G | TRAIL (mm) | 122.0 | 122.0 | 122.0 | 122.0 |
| H | WHEELBASE (mm) | 1157 | 1177 | 1206 | 1230 |
| I | CHAIN STAY LENGTH (mm) | 438 | 438 | 438 | 438 |
| J | BOTTOM BRACKET DROP (mm) | 60 | 60 | 60 | 60 |
| K | STACK (mm) | 622 | 622 | 631 | 640 |
| L | REACH (mm) | 425 | 445 | 470 | 490 |
| M | STAND OVER HEIGHT (mm) | 727 | 746 | 764 | 791 |
| N | HANDLEBAR WIDTH (mm) | 780 | 780 | 780 | 780 |
| O | STEM LENGTH (mm) | 40 | 40 | 50 | 50 |
| P | CRANK LENGTH (mm) | 165 | 170 | 170 | 170 |
| Q | WHEEL SIZE | [F] 29" [R] 29" | [F] 29" [R] 29" | [F] 29" [R] 29" | [F] 29" [R] 29" |
